Class Diagram Preferences

In this section, you will understand how to configure the class diagrams through the Eclipse preferences.
The UML preferences can be selected from the menu bar:  Window > Preferences > eUML2 > Class Diagram.
The class diagram preferences are set in the eUML2 preferences submenu.

• Association
• Class
• Colors
• Dependency
• Inheritance
• Package

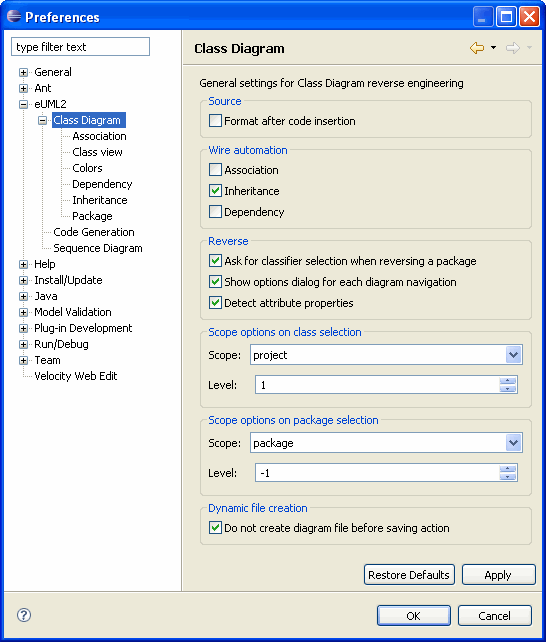

You can find the general settings for Class Diagram reverse engineening.
