Class Diagram Example

The following example shows a class diagram creation using Eclipse 3.2.

At first, we create the new project "bank".

We are going to add general Eclipse Preferences, which will be used in our example.
Click on Window>Preferences.

We decided to create a src and a bin output for this project.
Select Java>Build Path and click on Folders checkbox.

We are going to set up general UML preferences.
Click on eUML2, wait for the launch of eUML2.

Select the following options:
Toolbar:

Flat
with image
with text

Diagram Presentation:

Eclipse

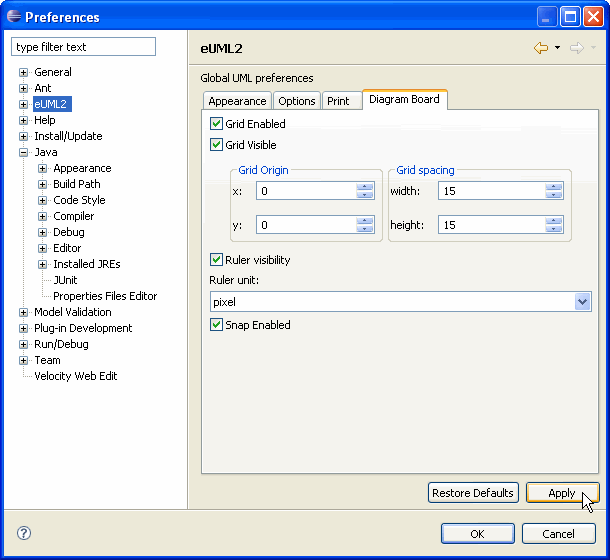

Select Diagram Board menu to activate the following options:

Grid Enabled
Ruler visibility > pixel
Sanp Enabled

We want to show Public, Protected, Private, Static and Package Attributes.
We also want to show Public and Package Methods.
We unselect the Use property concept checkbox.

We would like to use a Java Perspective.
Click on the top icon to select Java perspective.

We are going to create a new Java Package.
Select src in the Package Explorer New > Package.

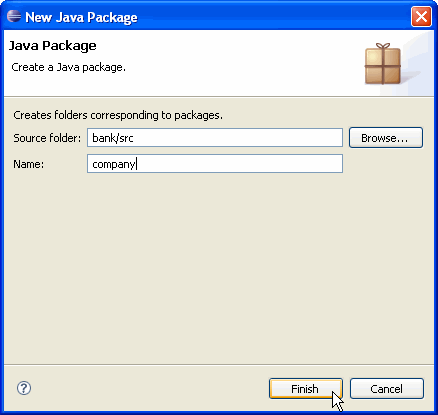

Enter the name of the Package.

Select company package in the Package Explorer, open the popup menu New > Other

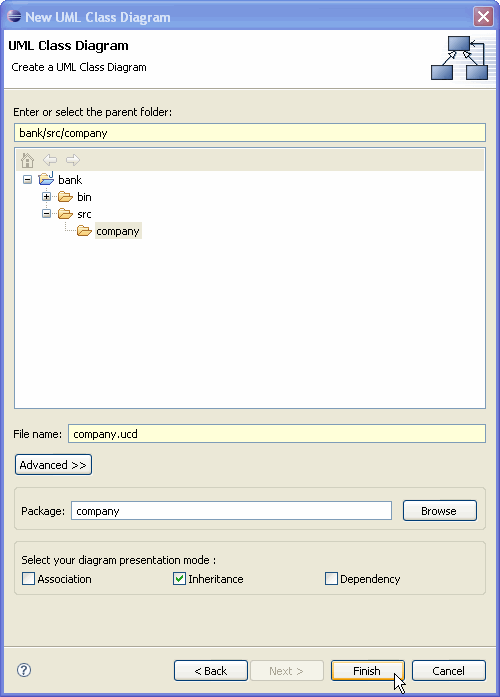

Select UML Diagrams > UML Class Diagram then click on the next button.

Enter the name of the class diagram file in the File name field.
Enter company, the ucd (UML Class Diagram) extension is related to the class diagram.
Click on the finish button.

The company class diagram is displayed.

Create a New Package. We have two ways to do it:

- with toolbar, by selecting new package in the toolbar and click on the diagram

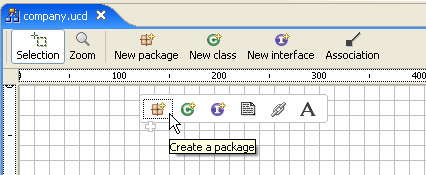

- with popup toolbar, by placing the mouse in the diagram area, when the popup toolbar appears, click on the new package icon.

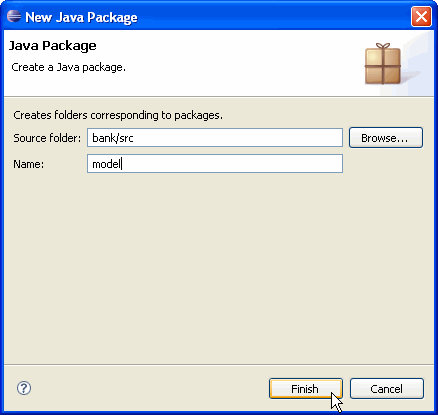

Enter the name of the package in the Name field.

Create a new Class Diagram inside the model Package.
Click on model > Open > Class diagram editor ...

In the Diagram options activate the following options:

Association
Inheritance

Create a New class.

Three ways can be used to create a new class :

Diagram toolbar	Popup toolbar	Popup menu

- with diagram toolbar, select New class in the toolbar and click on the diagram
- with popup toolbar, place the mouse in the diagram area, when the popup toolbar appears, click on the new class icon.
- with popup menu right click the mouse in the diagram area, select New > Class

Enter Person and click on the Finish button.

We are going to add two new propeties.
Click on Person > New > Property.

Enter Attributes properties: "age: int" and "name: java.lang.String".

We discover that attributes are not visible in the class diagram editor.

We want to show attributes and Methods in the Class diagram.
Select a class and open the popup menu then select View content selector.

Select Attributes tab and attributes checkbox in the left pane.

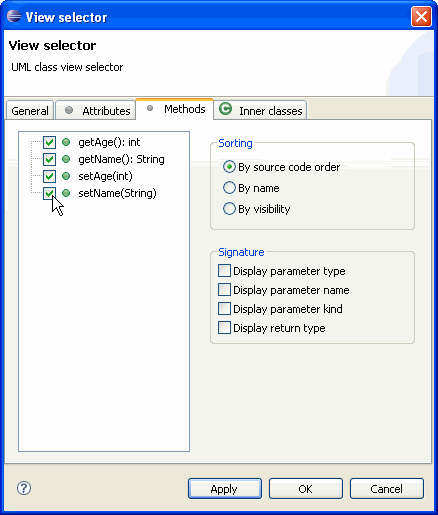

Select Methods tab and Methods checkbox in the left pane.

Create a New class named Employee.
We would like to add inheritance from Employee to Person.

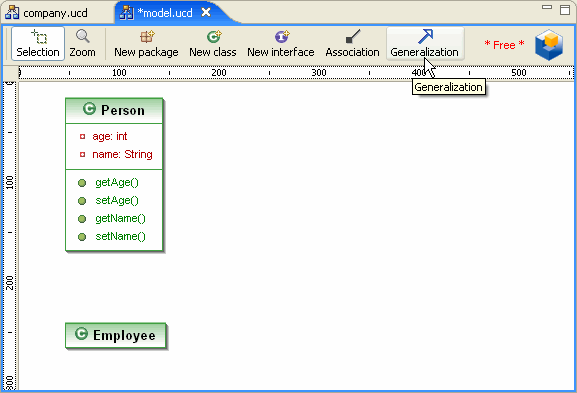

Select Generalization in the Toolbar.

Drag the Inheritance from Employee to Person.

Add "salary: float" attribute to Employee, we use this time the popup toolbar to realize it.

Create a New class named Company.

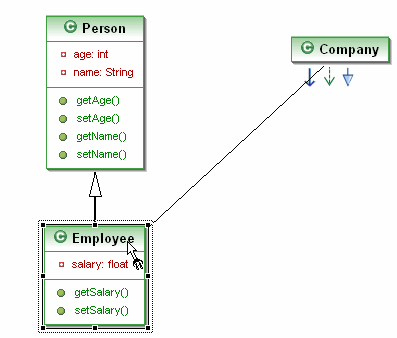

We want to create a new Association between Company and Employee.
Select Association in the Toolbar then drag from Company to Employee or use the popup toolbar to draw the link.

It is possible to add a name to the Label, but we will not in this example.

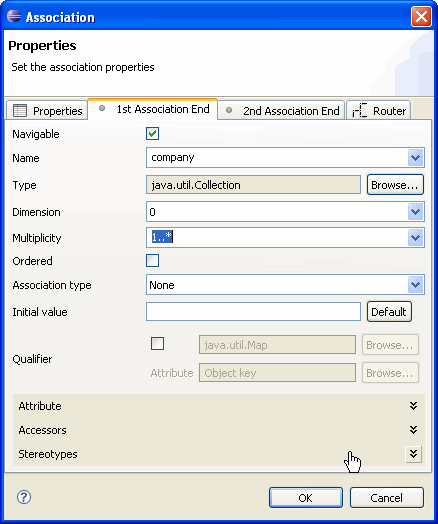

Enter the 1st Association End properties.
Select 1...* Multiplicity.

Enter the 2nd Association End properties.

Click on Company and Create two new Attributes: "name: String" and "activity: String". Then use popup menu View content selector to display them

Create a New class named Project and add an association between Company and Project.

Enter Association Properties.
Label: leave blank.

Enter the 1st Association End properties.
Select 1 for Multiplicity and "Default" for Initial value

Enter the 2nd Association End properties.
Select Qualifier in the 2nd Association End.
Select the Qualifier checkbox and enter name in the name field and Attribute String name.

Please check that your Class diagram is the same as below.

The colors are used to have a better understanding of our diagram. We can change them by selecting in the menu bar Windows > Preferences > eUML > Class Diagram > Colors

Add "name: String" new Attribute to Project class.
Add an Association between Employee and Project.
Select Association and drag from Employee to Project.
In the properties menu:
Connection: leave blank
1st Association End: Name: leader, Dimension 0, Multiplicity 0..1
2nd Association End: Name Project, Dimension 0, Multiplicity 0..1

We also need to show association members.
Right click inside the diagram editor, making sure that you don't select one of the elements - otherwise you are going to open the element popup menu and not the diagram popup menu.
Select the Show association member checkbox and click on the OK button.

All association attributes are now displayed in the class diagram.

Select an element and right click to open the element popup menu > View Selector
Use view selector (if needed) to display employee, activity and projectmap attributes etc...

Show code. Click on Employee attribute>Open>Source Editor

Type new code :

The marker shows unresolved type.

Correct the compilation error -> Resolve the type.

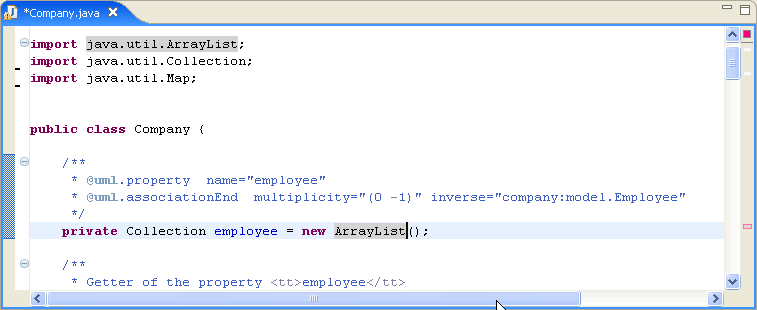

Place the mouse cursor at the end of "ArrayList".
Control + space and "java.util.ArrayList" is imported :

Now you can go back to your class diagram and enjoy modeling!

The class diagram extension is *.ucd.
